Fence a maglie a doppio filo 868 Fence a rete saldata
Fence a maglie a doppio filo 868 Fence a rete saldata
Fence a maglie a doppio filo 868 Fence a rete saldata
Fence a maglie a doppio filo 868 Fence a rete saldata
Fence a maglie a doppio filo 868 Fence a rete saldata
Fence a maglie a doppio filo 868 Fence a rete saldata
Fence a maglie a doppio filo 868 Fence a rete saldata
Fence a maglie a doppio filo 868 Fence a rete saldata
Fence a maglie a doppio filo 868 Fence a rete saldata

Fence a maglie a doppio filo 868 Fence a rete saldata

$40400-999 Piece/Pieces

$391000-4999 Piece/Pieces

$38≥5000Piece/Pieces

Tipo di pagamento:L/C,T/T,D/P,D/A,Paypal
Incoterm:FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP
Trasporti:Ocean
Porta:Tianjin
Caratteristiche del prodotto

ModelloQYM-Double Wire Fence

Modello n.double wire fence

Trattamento della superficiePvc Coated

Weave TechniqueWelded

AplikasiConstruction Wire Mesh, Protecting Mesh, Decorative Mesh

ColorGreen

TypeWelded Mesh

SertifikasiIso9001

ConditionNew

Height0.63m~2.43m

Width2.5m

Wire Diameter5.0mm-8.0mm

Opening Size50X200mm, 55X200mm

PostRound, Square, Rectangle

FinishingGalvanized, PVC Coated, Powder Coated

ClipsMetal

Optional ColorAll Ral Standard Color

Transport Packagein Pallet

SpecificationCE, SGS, BV

TrademarkQYM

OriginHebei, China

Codice SA73144100

Capacità di produzione5km/Day

MaterialLow-Carbon Iron Wire

Hole ShapeRectangle

Mesh Size50mm*200mm

Confezionamento e consegna
Unità vendibili : Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

Fence a doppio filo 05
Fence a doppio filo 01
Descrizione del prodotto

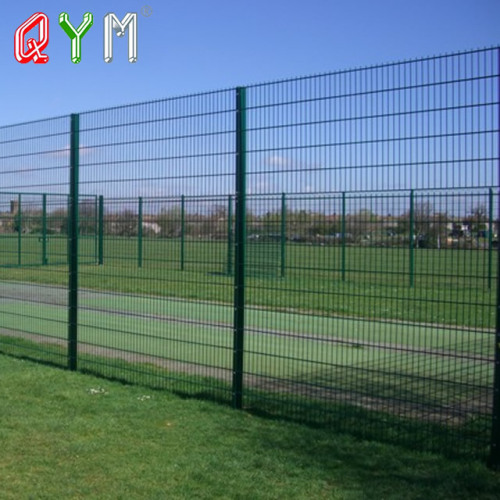

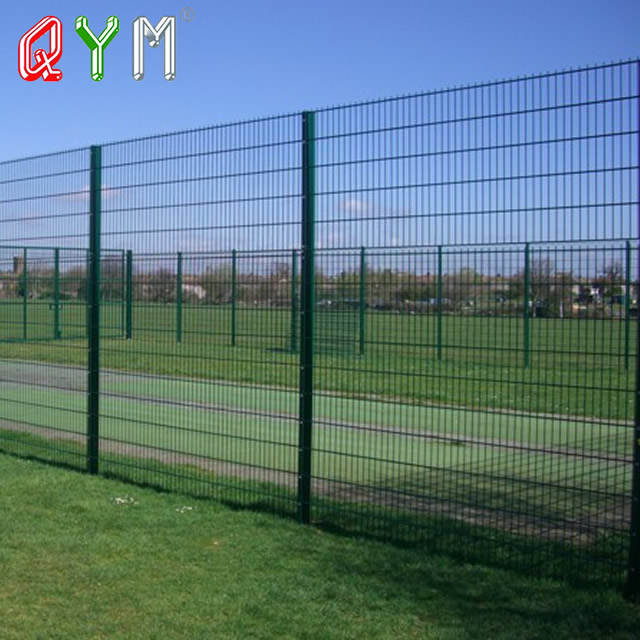

868 double welded wire mesh fence is in the horizontal direction with two transverse steel wire to heavy welding net vertical steel wire sandwiched welded together with the high fence system with a special column.

868 double welded wire mesh fence can built the bottom of the fence and the brick masonry wall as a whole,can be used in gardens, schools, residential areas, parking lots, roads, and other places, beautiful and durable.



QYM-Double Wire Fence

QYM-Double Wire Fence  is a flat panel, constructed from double  wire 6 mm or 8mm diameter horizontal wires  either side of a 5 mm or 6mm diameter vertical wire creating a strong rigid fence when fitted to a RHS post or Peach post.QYM FENCE is a company engaged in production and exportation of defence barrier,chain Link Fence,358 security fence,palisade fence,airport fence,temporary fence as well as other metal products.Its registered capital is RMB50,100,000(about USD7,400,000),covering a land area of 30,000 square meters.



Double Panel

PRODUCT
NAME

MESH SIZE

WIRE THICKNESS

COATING

PANEL
WIDTH

PANEL HEIGHT

PANEL
WEIGHT (~)

DOUBLE
PANEL

50x200 mm

1xø5 mm Vertical wire & 2xø6 mm Horizontal wire

Galvanised and Electrostatic
Polyester Coated

2,50 m

0,63 m

9,00 Kg

0,83 m

11,50 Kg

1,03 m

14,20 Kg

1,23 m

16,80 Kg

1,43 m

19,30 Kg

1,63 m

21,90 Kg

1,83 m

24,60 Kg

2,03 m

27,10 Kg

2,23 m

29,20 Kg

2,43 m

31,70 Kg


PRODUCT NAME

MESH
SIZE

WIRE
THICKNESS

COATING

PANEL WIDTH

PANEL HEIGHT

PANEL
WEIGHT (~)

DOUBLE
PANEL

50x200 mm

1xø6 mm Vertical wire&
2x
ø8 mm
Horizontal wire

Galvanised and Electrostatic Polyester
Coated

2,50 m

0,63m

14,60 kg

0,83m

18,80 kg

1,03m

23,00 kg

1,23m

27,10 kg

1,43m

31,30 kg

1,63m

35,40 kg

1,83m

39,50 kg

2,03m

43,70 kg

2,23m

48,00 kg

2,43m

52,00 kg



Profile

 Wall Thickness

Surface Treatment

Length

Base Plate

Rainhat

60x40mm

2.0mm

2.5mm

Galvanized and

Electrostatic polyester powder coated

On the basis of panel height

Available

Plastic

Or metal

80x40mm



Profile

 Wall Thickness

Surface Treatment

Length

Base Plate

Rainhat

60x90mm

1.2mm

1.5mm

Galvanized and

Electrostatic polyester powder coated

On the basis of panel height

Available

Plastic

70x100mm
