Barriere di difesa saldata Gabion Boxes Sand Wall
Barriere di difesa saldata Gabion Boxes Sand Wall
Barriere di difesa saldata Gabion Boxes Sand Wall
Barriere di difesa saldata Gabion Boxes Sand Wall
Barriere di difesa saldata Gabion Boxes Sand Wall
Barriere di difesa saldata Gabion Boxes Sand Wall
Barriere di difesa saldata Gabion Boxes Sand Wall
Barriere di difesa saldata Gabion Boxes Sand Wall
Barriere di difesa saldata Gabion Boxes Sand Wall

Barriere di difesa saldata Gabion Boxes Sand Wall

$20100-999 Set/Sets

$191000-4999 Set/Sets

$18≥5000Set/Sets

Tipo di pagamento:L/C,T/T,D/P,D/A,Paypal
Incoterm:FOB,CFR,CIF,EXW,FAS,FCA,CIP
Trasporti:Land,Ocean
Porta:Tianjin
Diameter:
Caratteristiche del prodotto

ModelloQYM-Defence Barrier

Modello n.Defensive barrier

SizeAs Your Request

Aperture75mm*75mm or as Your Request

TypeFlood Barrier

Mesh Wire Diamater3mm~6mm

Mesh Size2"~4"

Spring Wire Diameter3mm~6mm

GeotextileHeavy Duty Non-Woven Polypropylene, Color Can Be W

PacchettoWrapped with Shrink Film or Packed in Pallet

Transport PackageWrapped with Shrink Film or Packed in Pallet

SpecificationCE, BV, SGS

TrademarkQYM

OriginHebei, China

Codice SA73144100

Capacità di produzione1000sets/Week

MaterialGalvanized Iron Wire

AplikasiGabion Mesh, Gabions, Construction Wire Mesh

Hole ShapeSquare

UtilizzoCivil

TechnicsWelded

Trattamento della superficieGalvanized, Galfan Coated

Confezionamento e consegna
Unità vendibili : Set/Sets

The file is encrypted. Please fill in the following information to continue accessing it

Barriera difensiva Hesco pesantemente zincata Hesco Blast Wall1
Descrizione del prodotto

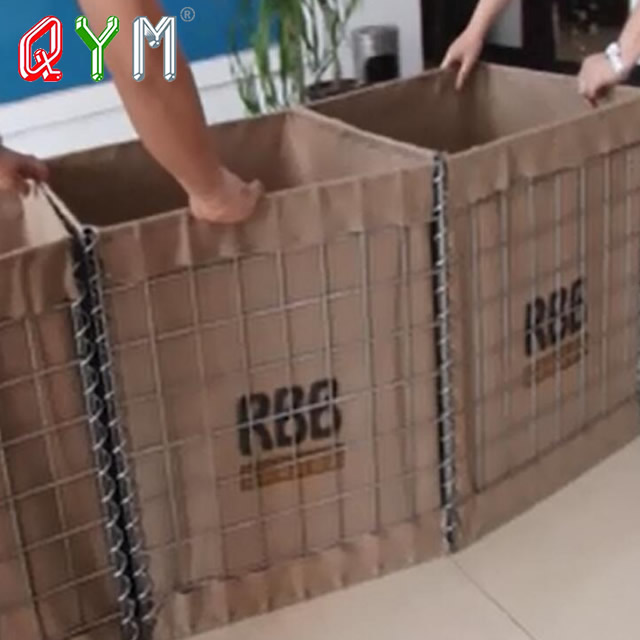

Defensive barriers are collapsible wire mesh containers that are filled with soil, sand, or gravel to create a temporary or semi-permanent barrier. They are made of a heavy-duty galvanized steel wire mesh, which is lined with a geotextile fabric to prevent soil erosion. The main advantage of defensive barriers is their ability to provide effective protection while being lightweight and easy to transport.

Defensive barriers have been widely used in conflict zones, disaster areas, and construction sites around the world,and military and security applications for protection against blast and ballistic threats, as well as in flood control and erosion prevention.

hesco barrier 1-01
QYM-Defence barrier

Defence barrier also named as defence bastion, defense wall, sand cage, welded gabion box, etc.It is a prefabricated,multi-cellularsystem, made of zinc coated steel welded mesh and lined with non-woven geotextile. Units can be extended and joined using the providedjoining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended,it is filled into sand,stone,then defence barrier like a defence wall or bunker,it is widely used for military fortification and flood control.QYM FENCE is a company engaged in production and exportation of defence barrier,chain Link Fence,358 security fence,palisade fence,airport fence,temporary fence as well as other metal products.Its registered capital is RMB50,100,000(about USD7,400,000),covering a land area of 30,000 square meters.

hesco barrier 1-02hesco barrier 1-03

Wire diameter
3.85mm,4mm,5mm etc
Mesh Size
75mmx75mm etc
Spring wire diameter
3mm,4mm,5mm etc
Panel Finish
Hot dipped galvanized or Galfan coated
Geotextile
Heavy duty non-woven polypropylene, color can be white, beige-sand, olive green, etc
Packing Wrapped with shrink film or packed in pallet

Technical Specification for Geotextile Fabric
Color
Beige sand,Olive green,Grey
Mass(g/sqm)
250,300,350
Tensile strength
16kN
Tear Strength
0.42kN
CBR Puncture
3.1kN
UV strength retention
ASTM D4355
50% at 500hours
(5 years use life in common environment)
70% at 500hours
(10 years use life in common environment)


Hesco Barrier 1-04Hesco Barrier 1-05Hesco Barrier 1-06

1.Perimeter Security and Defense Walls
2. Revietments di equipaggiamento
3. Composti di ammunizione
4. Bunker di persone e materiali
5. Punti di obsercazione
6. Posizioni di fuoco difensive
7. Punti di controllo delle entrate
8. POSTI DI GUIDA
9. Aree di ricerca di esplosivi e contrabbando
10. Checkpoint di Highway
11.Border Crossing Checkpoints
12. Protezione di strutture esistenti
13. Gestione del traffico in testa
14. Vehide hostile MlTING

Hesco Barrier 1-07
