Zinc Coating Difensive Bastion Defense Barrier

Zinc Coating Difensive Bastion Defense Barrier

$30400-1999 Set/Sets

$292000-4999 Set/Sets

$28≥5000Set/Sets

Tipo di pagamento:	L/C,T/T,D/P,D/A
Incoterm:	FOB,CFR,CIF,EXW
Trasporti:	Ocean
Porta:	Tianjin

contattaci ora

Descrizione del prodotto

Caratteristiche del prodotto

Confezionamento e consegna

Descrizione del prodotto

Other information

Caratteristiche del prodotto

Modello: Defence Barrier

marchio: Qym

Modello n.: defensive barrier

Size: As Your Request

Aperture: 75mm*75mm or as Your Request

Type: Qym-3

Spec.: 1m*1m*1m*5cell*2unit

Wire Diamater: 3mm~6mm

Mesh Size: 76.2*76.2mm

Geotextile: Heavy Duty Non-Woven Polypropylene, Color Can Be W

Pacchetto: Wrapped with Shrink Film or Packed in Pallet

Transport Package: Wrapped with Shrink Film or Packed in Pallet

Specification: CE, BV, SGS

Trademark: QYM

Origin: Hebei, China

Codice SA: 73144100

Capacità di produzione: 5000sets/Week

Material: Galvanized Iron Wire

Aplikasi: Gabion Mesh, Gabions, Construction Wire Mesh

Hole Shape: Square

Utilizzo: Civil, Military

Technics: Welded

Trattamento della superficie: Galvanized, Galfan Coated

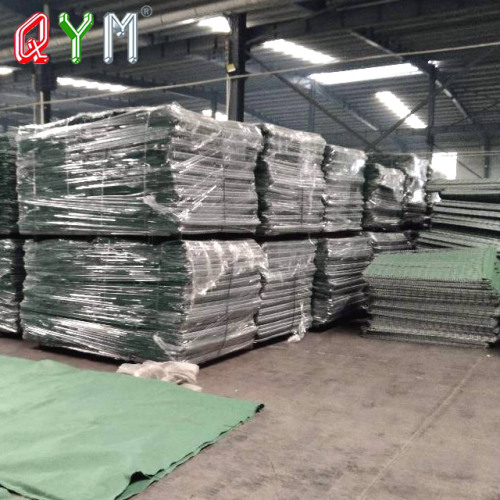

Confezionamento e consegna

Unità vendibili	:	Set/Sets
Tipo pacchetto	:	pallet
Esempio immagine	:

The file is encrypted. Please fill in the following information to continue accessing it

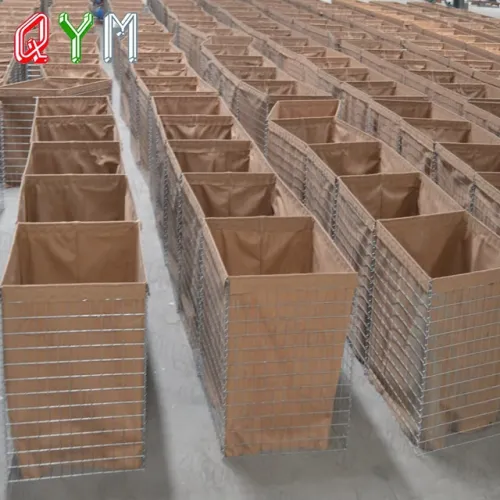

Barriera di difesa 01



Descrizione del prodotto

Defensive bastion barrier is made of galvanized steel welded mesh and lined with non-woven fabric,the connecting pin extension and connecting unit that can be provided are filled with sand and stone. Defensive bastion barrier likes a defensive wall or blockhouse, they are widely used for military defense and flood control.
hesco barrier 1-01
QYM-Defence barrier

Defence barrier also named as defence bastion, defense wall, sand cage, welded gabion box, etc.It is a prefabricated,multi-cellularsystem, made of zinc coated steel welded mesh and lined with non-woven geotextile. Units can be extended and joined using the providedjoining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended,it is filled into sand,stone,then defence barrier like a defence wall or bunker,it is widely used for military fortification and flood control.QYM FENCE is a company engaged in production and exportation of defence barrier,chain Link Fence,358 security fence,palisade fence,airport fence,temporary fence as well as other metal products.Its registered capital is RMB50,100,000(about USD7,400,000),covering a land area of 30,000 square meters.

hesco barrier 1-02 hesco barrier 1-03

Wire diameter	3.85mm,4mm,5mm etc
Mesh Size	75mmx75mm etc
Spring wire diameter	3mm,4mm,5mm etc
Panel Finish	Hot dipped galvanized or Galfan coated
Geotextile	Heavy duty non-woven polypropylene, color can be white, beige-sand, olive green, etc
Packing Wrapped with shrink film or packed in pallet

Technical Specification for Geotextile Fabric
Color	Beige sand,Olive green,Grey
Mass(g/sqm)	250,300,350
Tensile strength	16kN
Tear Strength	0.42kN
CBR Puncture	3.1kN
UV strength retention ASTM D4355	50% at 500hours (5 years use life in common environment)
	70% at 500hours (10 years use life in common environment)

Hesco Barrier 1-04 Hesco Barrier 1-05 Hesco Barrier 1-06

1.Perimeter Security and Defense Walls
2. Revietments di equipaggiamento
3. Composti di ammunizione
4. Bunker di persone e materiali
5. Punti di obsercazione
6. Posizioni di fuoco difensive
7. Punti di controllo delle entrate
8. POSTI DI GUIDA
9. Aree di ricerca di esplosivi e contrabbando
10. Checkpoint di Highway
11.Border Crossing Checkpoints
12. Protezione di strutture esistenti
13. Gestione del traffico in testa
14. Vehide hostile MlTING

Hesco Barrier 1-07
